Products

A

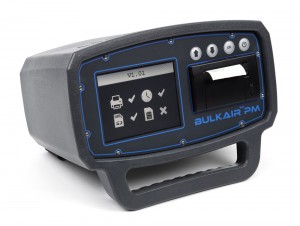

Bulk Air PM

Multi-channel pressure monitor

• +-100Pa pressure range
• Available with 1,2 or 4 pressure channels
• Large colour display
• Thermal printer
• USB connection with SD card data storage
• Battery back-up
• GSM alarms
• Alarm output
• Internet monitoring (available late 2018)

The Bulk Air™ PM (Pressure Monitor) is the latest in pressure monitoring technology. It uses a digital pressure sensors to achieve highly accurate pressure measurement. Its’ rotationally moulded case combined with polycarbonate bulkheads makes a very tough yet stylish product. The 5.7 Inch full-colour TFT display provides crystal clear presentation of the pressure status whilst a thermal printer provides a hard copy of all data. Additional effort has been invested to ensure simple and future-proof PC connectivity; a USB 2.0 connection makes it easy to drag pressure data off the product or upgrade the software in the field.

Ultimately the Bulk Air™ PM has been designed to be as simple and reliable as possible in order to provide the user with years of useful service.

A

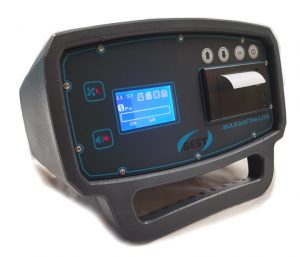

Bulk Air PM LITE

Low cost pressure monitor

• +-100Pa pressure range
• Thermal printer
• SD card data storage
• Battery back-up
• Alarm output

The Bulk Air™ PM LITE (Pressure Monitor) has fewer features than the Bulk Air™ PM for applications where only basic pressure monitoring is required. It uses a digital pressure sensor to achieve highly accurate pressure measurement. Its’ rotationally moulded case combined with polycarbonate bulkheads makes a very tough yet stylish product. A small graphics display provides clear presentation of the pressure status whilst a thermal printer provides a hard copy of all data. Pressure data is also stored on a removable SD Card.

A

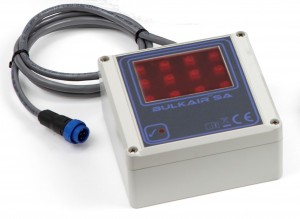

Bulk Air SA

Alarm siren and strobe unit

• Large array of 12 LEDs for maximum reliability and illumination
• 95dB Siren
• Connection indicator
• Connects directly to Bulk Air PM unit
• Multiple units can be connected together for improved warning
• Tough ABS case

The Bulk Air SA (Siren/Alarm) has been designed to compliment the Bulk Air PM by extending the range of the pressure warning system. The Bulk Air SA simply plugs into the back of the Bulk Air PM unit and requires no additional power supplies. Up to five (5) Bulk Air SA units can be connected in series (daisy-chained) together to provide a comprehensive warning system for even the largest work site.

A

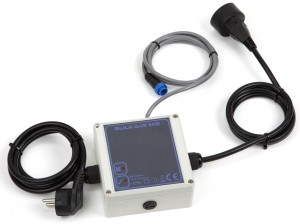

Bulk Air MS

Remote fan mains switch

• Remote switching of mains voltages
• Rated at 250VAC up to 16A
• Connection indicator
• Multiple units can be connected in series
• Auto-configure of channel 1 & 2
• Switch active indicator

The Bulk Air MS (Mains Switch) has been designed to compliment the Bulk Air PM by enabling the remote activation of secondary air mover fans. The Bulk Air MS simply plugs into the back of the Bulk Air PM unit and requires no additional power supplies. Up to two (2) Bulk Air MS units can be connected in series (daisy-chained) together and automatically configure for pressure channel 1 and 2.

A

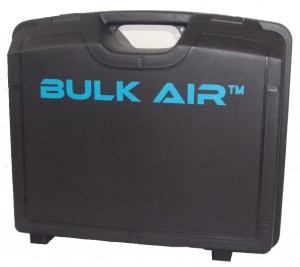

Bulk Air TC

Bulk Air system transport case

• Holds Bulk Air PM, SA, MS plus cables, printer paper rolls and air pipes.
• Rugged construction
• Cut foam internal to securely hold products

The Bulk Air TC (Transport Case) was developed due to compliment the Bulk Air product range by providing a robust and convenient way to store and transport a complete Bulk Air system. The rugged case contains a machine cut foam interior that securely holds a Bulk Air PM, MS, SA and the additional cables, printer rolls and air pressure pipes. The Bulk Air TC is an example of a product developed as a result of customer requests.

A

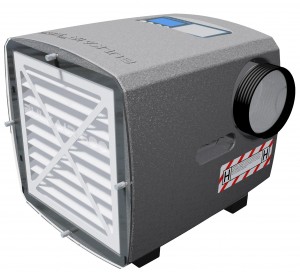

Bulk Air AM (available late 2018)

Negative Pressure Fan Unit

• 750m³/h air flow
• Tough design
• Digital filter pressure monitor
• Total working hours display
• Air flow rate display
• Standby mode for remote switching
• Variable air flow control
• Conforms to BS 8520-2:2009

The Bulk Air AM (Air Mover) is our latest and very exciting new product. It forms the first of a series of negative pressure units (NPU) with intelligent capabilities. Unlike all other NPUs in its’ price range, it digitally monitors the pressure across the HEPA filter to determine the air flow rate. Furthermore, it is able to estimate the remaining life (in hours) of the HEPA to enable the end user to make alternative arrangements. The AM connects directly to the Bulk Air PM products for secondary back-up filtering.
